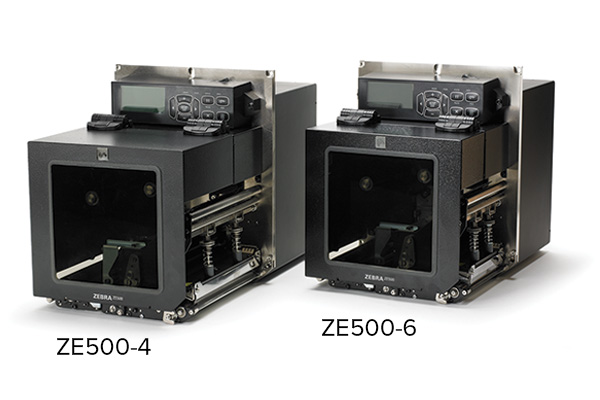

ZEBRA ZE500 PRINT ENGINE

ZEBRA ZE500 PRINT ENGINE
Zebra’s ZE500™ Series print engines are designed to keep your mission-critical print-and-apply applications operating without interruptions. Incorporating customer feedback and best practices into the design, Zebra® created print engines that can endure harsh environments and are easy to integrate, operate and maintain. Pairing mindful engineering with the features you need—including optional expanded RFID capabilities for greater tracking and visibility—ZE500 Series print engines give you the tools and flexibility you need to keep your business moving forward.
SPECIFICATIONS
FEATURES
- Resolution: 203 dpi/8 dots per mm or 300 dpi/12 dots per mm
- Memory:16 MB SDRAM, 64 MB Flash
- Maximum Print Width:
- ZE500-4: 4.1"/104 mm
- ZE500-6: 6.6"/168 mm
- Maximum Print Speed:
- ZE500-4: 12"/305 mm per second (203 and 300 dpi)
- ZE500-6: 12"/305 mm per second (203 dpi) 10"/254 mm per second (300 dpi)
- Media Sensors: Transmissive and reflective
- Physical Size:
- ZE500-4: 14.9"/379 mm L x 9.6"/245 mm W x 11.8"/300 mm H, 34 lbs./15.4 kg
- ZE500-6: 17.2"/438 mm L x 9.6"/245 mm W x 11.8"/300 mm H, 38 lbs./17.3 kg
Print Length:
- ZE500-4:
- Label and liner width: 0.625”/16 mm to 4.5”/ 114 mm
- Minimum length with back feed: 0.5”/13 mm
- Minimum length without back feed: 0.25”/6.5 mm
- Minimum length in stream mode: 0.25”/6.5 mm
- Maximum length: 39”/991 mm
- Maximum continuous media print length:
150”/3,810 mm - Ribbon width: 1”/25.4 mm to 4.2”/107 mm
- ZE500-6:
- Label and liner width: 3”/76 mm to 7.1”/180 mm
- Minimum length with back feed: 3”/76 mm
- Minimum length without back feed: 1”/25.4 mm
- Minimum length in stream mode: 1”/25.4 mm
- Maximum length: 39”/991 mm
- Maximum continuous media print length: 150”/3,810 mm
- Ribbon width: 3”/76 mm to 7.1”/180 mm
Standard Features:
- Print methods: thermal transfer or direct thermal
- Orientation: right-hand or left-hand
- Industrial all-metal construction
- Applicator interface
- Transmissive and reflective media sensors
- Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
- Real-time clock
- Rotatable display
- ZPL II®
- Operating Temperature: 31°F to 104°F/0°C to 40°C
- Operating Humidity: 20% to 95% non-condensing R.H.
- Storage/Transportation Temperature: -40°F to 160°F/-40°C to 71°C
- Storage Humidity: 5% to 95% non-condensing R.H.
Electrical: Universal power supply with power-factor correction 90–264 VAC, 47–63 Hz
Agency Approvals:
VCCI, CCC
• Standards approvals: IEC 60950-1; EN 55022, Class A; EN 55024; EN 61000-3-2, 3-3
• Product markings: NRTL; CE; FCC A; ICES-003; VCCI; C-Tick; CCC; NOM; Gost-R; S- Mark; KCC; BSMI
