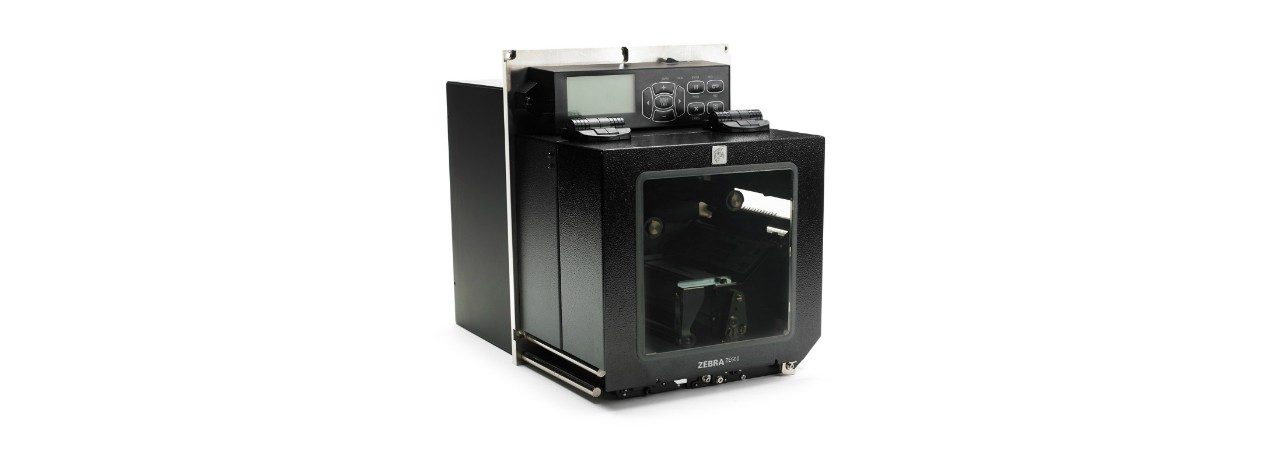

ZEBRA ZE500R RFID PRINT ENGINE

ZE500R RFID PRINT ENGINE
Performance leaders in mission-critical RFID printing applications, these reliable print engines with RFID technology empower you with an integrated solution for identifying packages, cases and pallets. The ZE500R embeds a fully integrated ThingMagic RFID Reader/Encoder and supports the ability to print and encode short pitch item level tags, chip based serialization and block permalocking of user memory.
SPECIFICATIONS
FEATURES
- Resolution: 203 dpi/8 dots per mm
- Memory:16 MB SDRAM, 64 MB Flash
- Maximum Print Width:
- ZE500R: 4.1"/104 mm
- Maximum Print Speed:
- ZE500R: 12"/305 mm per second (203 and 300 dpi)
- Media Sensors: Transmissive and reflective
- Physical Size:
- ZE500R: 14.9"/379 mm L x 9.6"/245 mm W x 11.8"/300 mm H, 34 lbs./15.4 kg
Print Length:
- ZE500R:
- Label and liner width: 0.625”/16 mm to 4.5”/ 114 mm
- Minimum length with back feed: 0.5”/13 mm
- Minimum length without back feed: 0.25”/6.5 mm
- Minimum length in stream mode: 0.25”/6.5 mm
- Maximum length: 39”/991 mm
- Maximum continuous media print length:
150”/3,810 mm - Ribbon width: 1”/25.4 mm to 4.2”/107 mm
Standard Features:
- Print methods: thermal transfer or direct thermal
- Orientation: right-hand or left-hand
- Industrial all-metal construction
- Applicator interface
- Transmissive and reflective media sensors
- Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
- Real-time clock
- Rotatable display
- ZPL II®
Environmental:
- Operating Temperature: 31°F to 104°F/0°C to 40°C
- Operating Humidity: 20% to 95% non-condensing R.H.
- Storage/Transportation Temperature: -40°F to 160°F/-40°C to 71°C
- Storage Humidity: 5% to 95% non-condensing R.H.
Electrical: Universal power supply with power-factor correction 90–264 VAC, 47–63 Hz
Agency Approvals:
VCCI, CCC
• Standards approvals: IEC 60950-1; EN 55022, Class A; EN 55024; EN 61000-3-2, 3-3
• Product markings: NRTL; CE; FCC A; ICES-003; VCCI; C-Tick; CCC; NOM; Gost-R; S- Mark; KCC; BSMI
