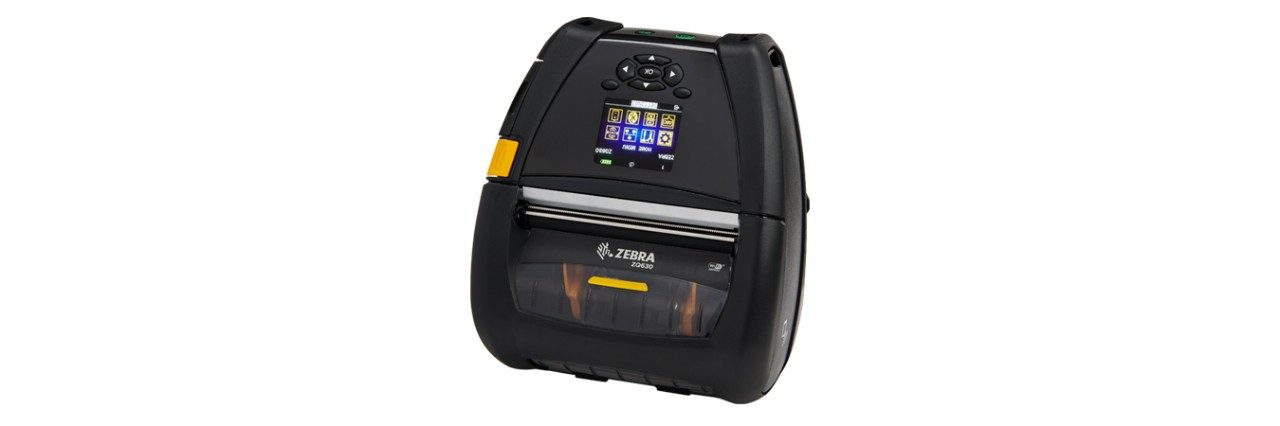

ZEBRA ZQ600 PLUS SERIES MOBILE PRINTER
ZQ600 PLUS MOBILE PRINTER
Improve inventory management and customer service in your store with the ZQ600 Series mobile printer. Taking the popular QLn Series and making it even better, the ZQ600 Series delivers advanced technology and an innovative and portable design that drives productivity, ease-of-use and manageability to a new level.
Models: ZQ610 Plus, ZQ620 Plus, ZQ630 Plus, ZQ630 Plus RFID
SPECIFICATIONS
FEATURES
- Resolution: 203 dpi/8 dots per mm
- Memory: 256 MB RAM; 512 MB Flash (standard)
- Battery:
- ZQ610 Plus & ZQ620 Plus: 3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery
- ZQ630 Plus: 6600 mAh (nominal) 47.5 Wh removable, rechargeable PowerPrecision + Li-Ion battery
- Maximum Print Width:
- ZQ610 Plus: 1.9 in./48 mm
- ZQ620 Plus: 2.8 in./72 mm
- ZQ630 Plus: 4.1 in./104 mm
- Print Speed: Up to 4.5 in./115 mm per second
- Media Sensors: Black mark and gap media sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time
- Print Length:
- Minimum: 0.5 in./12.7 mm
- Maximum: 32 in./813 mm
- Dimensions:
- ZQ610 Plus: 6.73 in. L x 3.6 in. W x 2.85 in. H
170.9 mm L x 91.4 mm L x 72.4 mm H - ZQ620 Plus: 6.84 in. L x 4.64 in. W x 3.03 in. H
173.7 mm L x 117.9 mm W x 76.9 mm H - ZQ630: 7.35 in. L x 6.5 in. W x 3.25 in. H
187mm L x 165 mm W x 82.5 H mm
- ZQ610 Plus: 6.73 in. L x 3.6 in. W x 2.85 in. H
- Weight with Battery:
- ZQ610 Plus: 1.33 lbs/0.6 kg
- ZQ620 Plus: 1.6 lbs/0.73 kg
- ZQ630 Plus: 2.45 lbs/1.1 kg
• Direct thermal printing of barcodes, text and graphics
• Built-in battery charger
• Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery)
• Easy-to-use peel and present mode
• Label present sensor for issuing labels one at a time
• Tear bar for easy media dispensing
• Center-loading media locking for variable roll widths
• Large, easy-to-read color display (288 x 240 pixels)
• Supports vertical and horizontal printing
• Printers can be used in any orientation
- Operating Temp.: -4°F to 122°F/-20°C to 50°C
- Storage Temp.: -13°F to 149°F/-25°C to 65°C
- Operating Humidity: 10% to 90% non-condensing
