# ZEBRA ZT500 SERIES INDUSTRIAL PRINTER

![ZT510](https://www.lpautomation.com/hubfs/ZT510.jpg)

LABEL PRINTERS

## ZT510 INDUSTRIAL PRINTER

Designed to strike the ideal balance between performance and value, the ZT510 includes the core features you need in an industrial printer at a cost-effective price point. Building on the legacy of its industry-leading predecessor, the Zebra® 105SLPlus™, the ZT510 provides a proven, durable design and construction while adding advanced management and monitoring capabilities. That means you get 24/7 reliability to keep your operations running smoothly today, plus longevity and advanced functionality to power through every challenge in the years to come—all at an exceptional value.

[BUY NOW ](https://printersandlabels.com/barcode-label-printers/industrial-label-printers/?_bc_fsnf=1&Model=ZT510)

[SPEC SHEET](https://www.lpautomation.com/hubfs/ZT510%20Spec%20Sheet.pdf)

##### SPECIFICATIONS

##### FEATURES

Resolution:

- 203 dpi/8 dots per mm
- 300 dpi/12 dots per mm (optional)

Memory:

- 512 MB RAM memory
- 2 GB on-board linear Flash memory

Maximum Print Width:

- 4.09"/104 mm

Maximum Print Speed:

- 12 ips/305 mm per second

Media Sensors:

- Dual media sensors: transmissive and reflective

Maximum Continuous Print Length

- 203 dpi: 150"/3810 mm
- 300 dpi: 100"/2540 mm

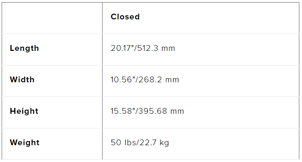

Dimensions (closed):

- 20.17" L x 10.56" W x 15.58" H (512.3 mm L x 268.2 mm W x 395.68 mm H)

Weight:

- 50 lbs./22.7 kg

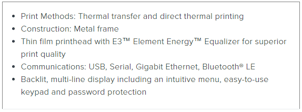

- Print Methods: Thermal transfer and direct thermal printing
- Construction: Metal frame
- Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
- Communications: USB, Serial, Gigabit Ethernet, Bluetooth® LE
- Backlit, multi-line display including an intuitive menu, easy-to-use keypad and password protection

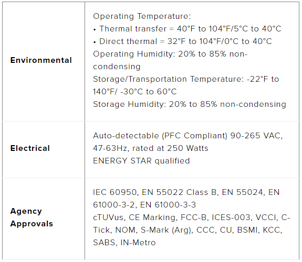

Environmental:

- Operating Temperature:
    - Thermal transfer = 40°F to 104°F/5°C to 40°C
    - Direct thermal = 32°F to 104°F/0°C to 40°C
- Operating Humidity:
    - 20% to 85% non-condensing
- Storage/Transportation Temperature:
    - -22°F to 140°F/ -30°C to 60°C
- Storage Humidity: 20% to 85% non-condensing
