Built to Last: Durable Print and Apply Labeling System for Industrial Applications

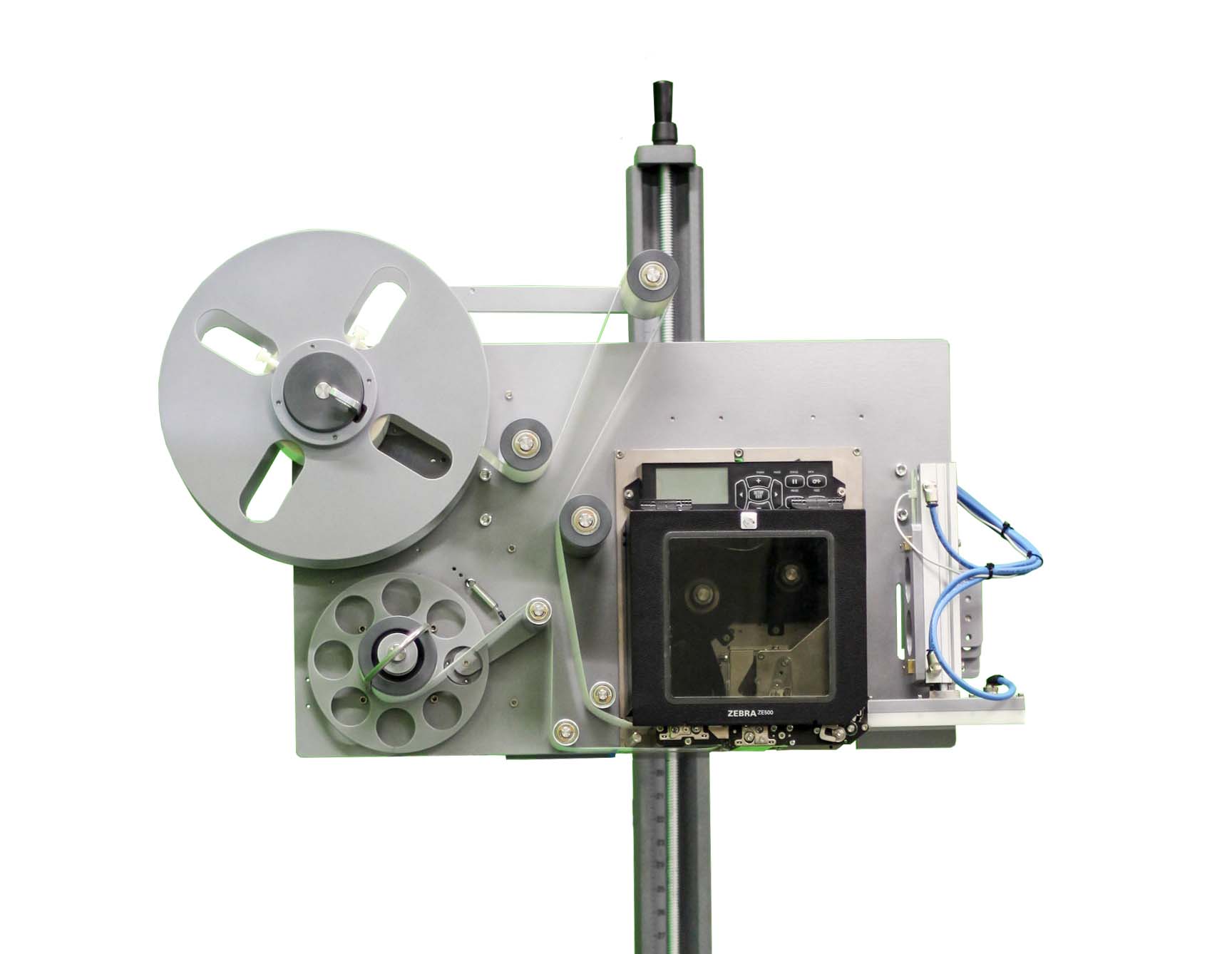

PRINT AND APPLY LABEL APPLICATOR

The LabelPack 410 is a rugged, American-made print and apply labeling machine engineered for demanding environments. Perfect for product labeling, cross-docking, pallet labeling, and shipping applications, it delivers consistent performance shift after shift. With a heavy-duty frame, precision smart tamp technology, and flexible mounting options, the 410 stands up to the toughest production lines. Fast setup, low maintenance, and a user-friendly touchscreen interface make it easy to operate and integrate into any workflow.

TALK TO AN ENGINEER DOWNLOAD SPEC SHEET
PrintAndApply_DistrubutionCenter

SPECIFICATIONS

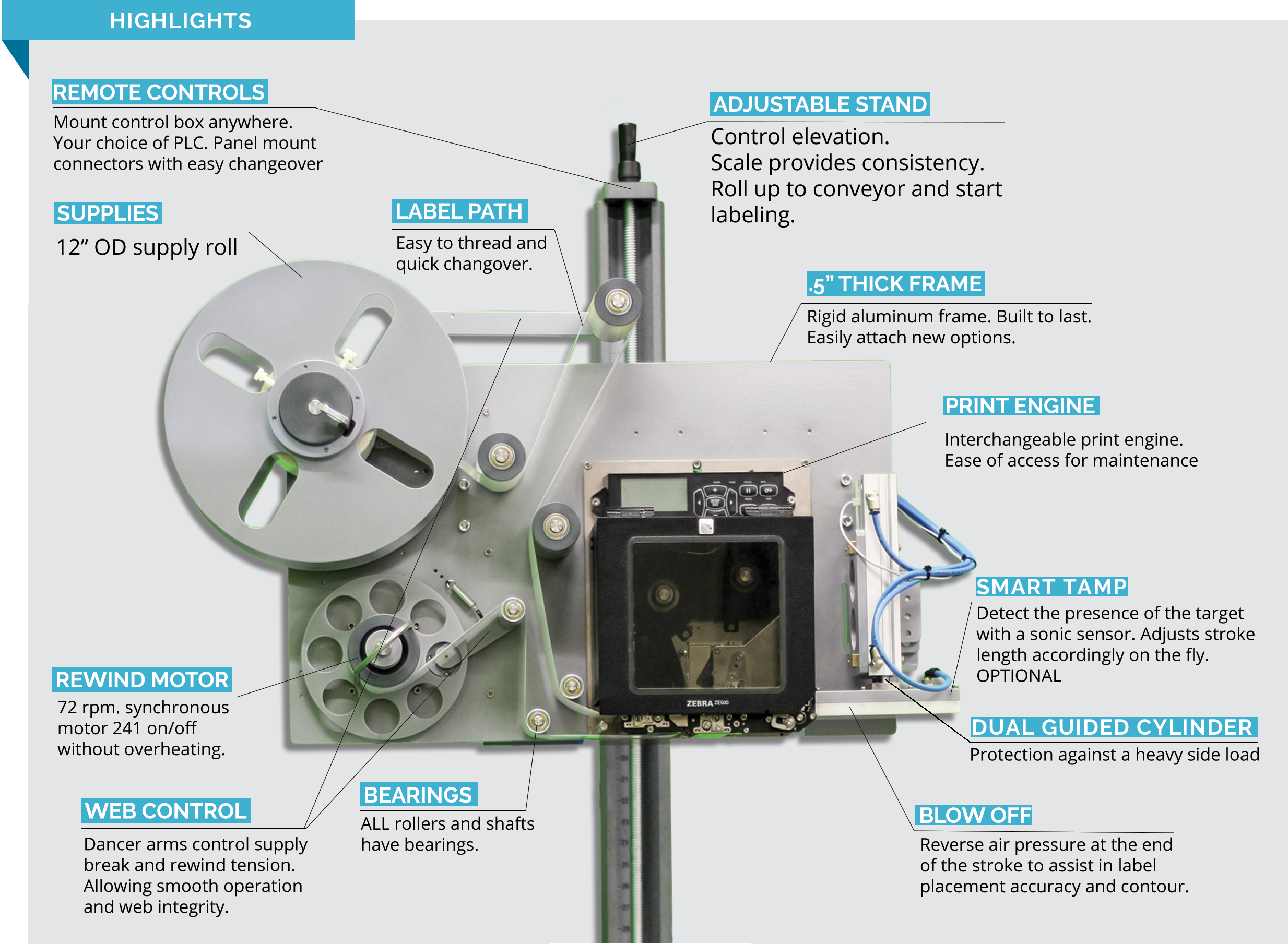

PrintAndApplyHighlights

  • Label Roll Capacity: Up to 12” outer diameter on a 3” core
  • Electrical Requirements: 115 VAC, 60 Hz, single phase
  • Air Requirements: 90 PSI clean, dry, regulated compressed air
  • Labeling Accuracy: ±1/32” with consistent product presentation
  • Print Engine Compatibility: Zebra, Sato, and other OEM print modules
  • Machine Frame: Heavy-duty powder-coated aluminum and steel construction
  • Mounting: Floor stand or custom conveyor frame integration available
  • User Interface: HMI with touch-screen control (optional for advanced control)
  • Communication Options: Ethernet/IP, discrete I/O, or serial communication

Application Methods – Model 410 Print and Apply Labeler

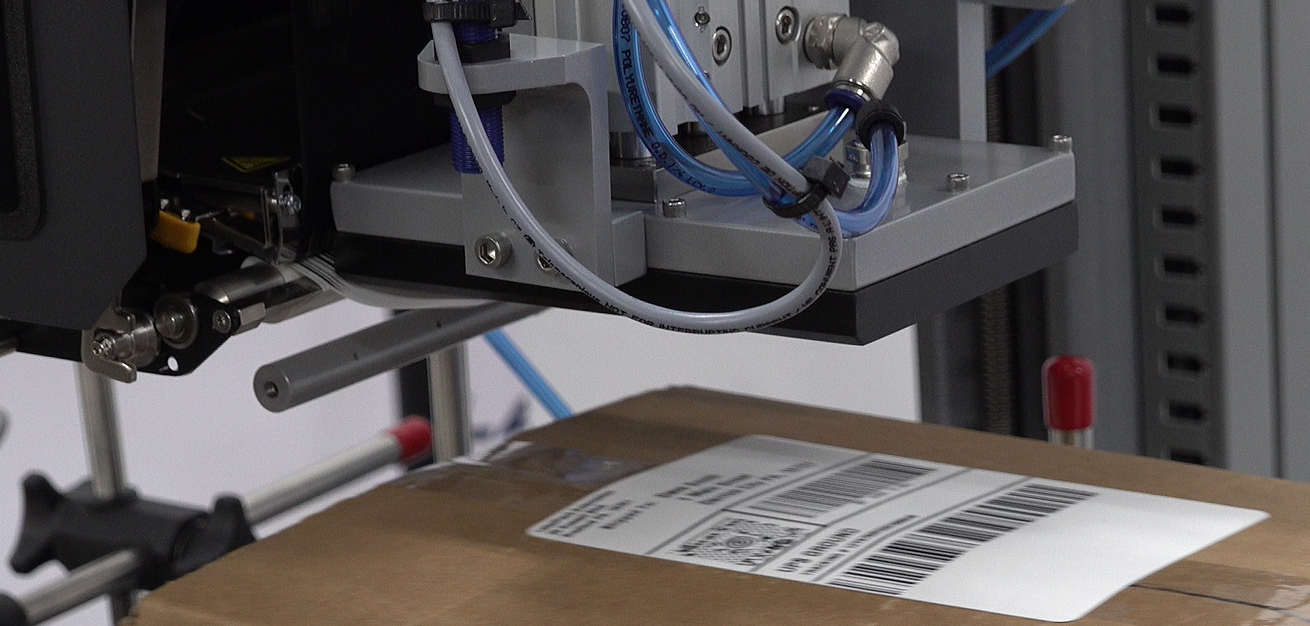

Prin-And-Apply-WarehouseTAMP/BLOW

The standard method where the label is held on a vacuum tamp pad, extended toward the product, and blown onto the surface at close range.

  • Best For: Stationary or slow-moving flat products

  • Key Advantage: Combines tamp accuracy with non-contact application

  • Common Uses: Boxes, cartons, tray







SMART TAMP - FOR RANDOM SIZE BOXES

An advanced tamp/blow system that detects varying product heights or positions and adjusts the stroke automatically in real-time.

  • Best For: Variable-sized products on the same line

  • Key Advantage: Dynamic stroke control without needing height sensors or multiple presets

  • Common Uses: Distribution centers, e-commerce fulfillment

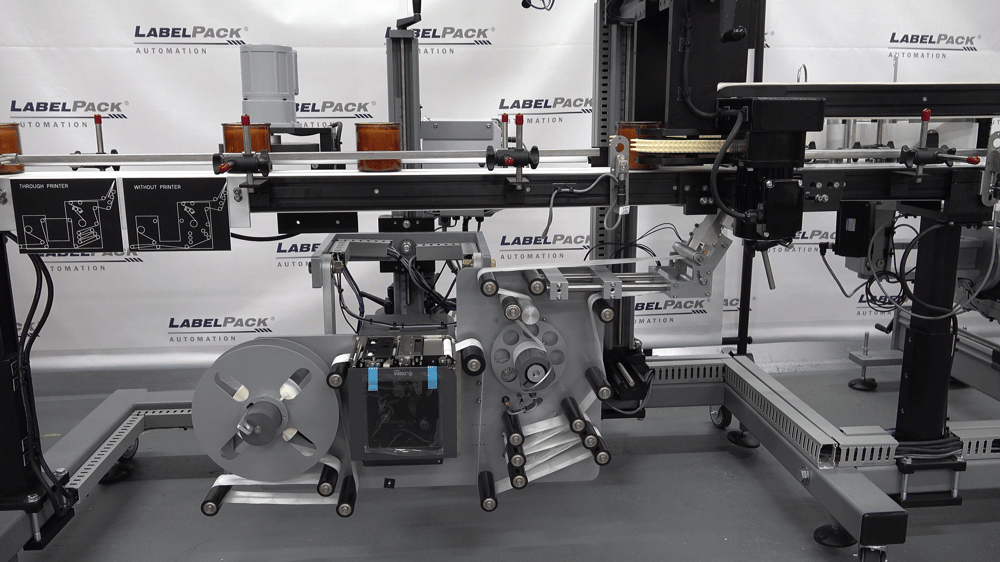

Wipe

WIPE-ON

A pivoting tamp pad applies the label by tilting into position and wiping it onto the product as it moves past.

  • Best For: Side or angled label placement on moving products

  • Key Advantage: Maintains contact for wrinkle-free adhesion during motion

  • Common Uses: Cartons, shrink-wrapped goods, bags

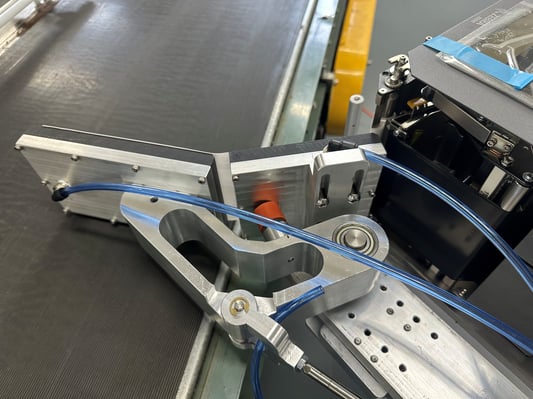

Prin-And-Apply-WarehouseCORNER WRAP

Applies one label across two adjacent panels (typically the front and side) by tamping onto the first panel and wiping around the corner.

  • Best For: Boxes needing two-sided identification or compliance labels

  • Key Advantage: Single-cycle dual-panel label application

  • Common Uses: Shipping compliance (Walmart, Amazon), LTL pallets

TWO-PANEL

Applies two different labels — one on the front or side, the other on a second adjacent panel — using a dual-application mechanism.

  • Best For: Products requiring both a product label and a compliance or tracking label

  • Key Advantage: Efficient application of two labels in a single station

  • Common Uses: Retail-ready cartons, pharmaceutical boxes, regulated goods

Optional Features & Configuration Upgrades – Model 410

ALL ELECTRIC OPTION

Eliminates the need for compressed air by using electric actuators for tamp motion and label handling.

  • Benefit: Ideal for facilities without pneumatic infrastructure or where air use is restricted

  • Advantage: Lower maintenance, quieter operation, improved energy efficiency

  • Use Case: Cleanroom environments, green facilities, or where compressed air is costly or unreliable

6" CORE ADAPTER

Enables the use of larger label roll cores (6” ID) for extended production runs.

  • Benefit: Reduces downtime for roll changes

  • Advantage: Compatible with both 3” and 6” cores via interchangeable adapters

  • Use Case: High-volume labeling environments with longer operational cycles

MOUNTING OPTIONS

HEAVY-DUTY STAND

A robust freestanding base with locking casters and height adjustment for flexible placement.

  • Benefit: Allows mobile deployment across multiple production lines

  • Advantage: Easy repositioning, industrial-grade stability

  • Use Case: Changing production lines, limited floor space

CONVEYOR MOUNTED

Directly mounts the applicator to an existing conveyor or transport system.

  • Benefit: Integrated labeling with minimal footprint

  • Advantage: Fixed-position accuracy and seamless product handling

  • Use Case: Dedicated high-speed packaging lines

CUSTOM MOUNT CONFIGURATIONS

Custom-fabricated mounting solutions tailored to fit unique layouts, robotic systems, or complex product handling environments.

  • Benefit: Maximum adaptability for specialized installations

  • Advantage: Engineer-to-order bracketry, angled or overhead configurations available

  • Use Case: OEM integrations, vision-guided systems, tight floorplans

PLC CONTROL OPTIONS

ALLEN-BRADLEY

Rockwell-compatible control platform for customers standardized on AB controls.

  • Best For: Facilities using Rockwell Automation systems

  • Integration: Seamless with EtherNet/IP, CompactLogix, ControlLogix platforms

AUTOMATION DIRECT

Affordable, U.S.-based controller option with strong local support and easy programming.

  • Best For: Value-conscious integrators and custom machine builders

  • Integration: Supports serial, Ethernet, and discrete I/O

ADDITIONAL OPTIONS FOR THE MODEL 410

LABEL PRESENT DELAY & NO-LABEL FAULT DETECTION

  • Automatically pauses the machine or signals a fault if a label isn’t detected before application

  • Advantage: Reduces product waste, improves quality control

  • Use Case: Mission-critical labeling environments with strict compliance

LOW LABEL & END-OF-ROLL DETECTION

  • Sensors notify operator before label roll runs out

  • Benefit: Prevents unplanned downtime

  • Integration: Can trigger lights, alarms, or HMI messages

REMOTE I/O OR FIELDBUS COMMUNICATION

  • EtherNet/IP, Modbus TCP, ProfiNet

  • Benefit: Integrates directly into line controls or SCADA systems

  • Use Case: Smart factories, Industry 4.0 applications

HMI TOUCHSCREEN INTERFACE

  • Displays real-time system status, diagnostics, and changeover tools

  • Optional large format screen or multilingual interface

  • Benefit: Intuitive operation and faster troubleshooting

VISION SYSTEM OR BARCODE SCANNER INTEGRATION

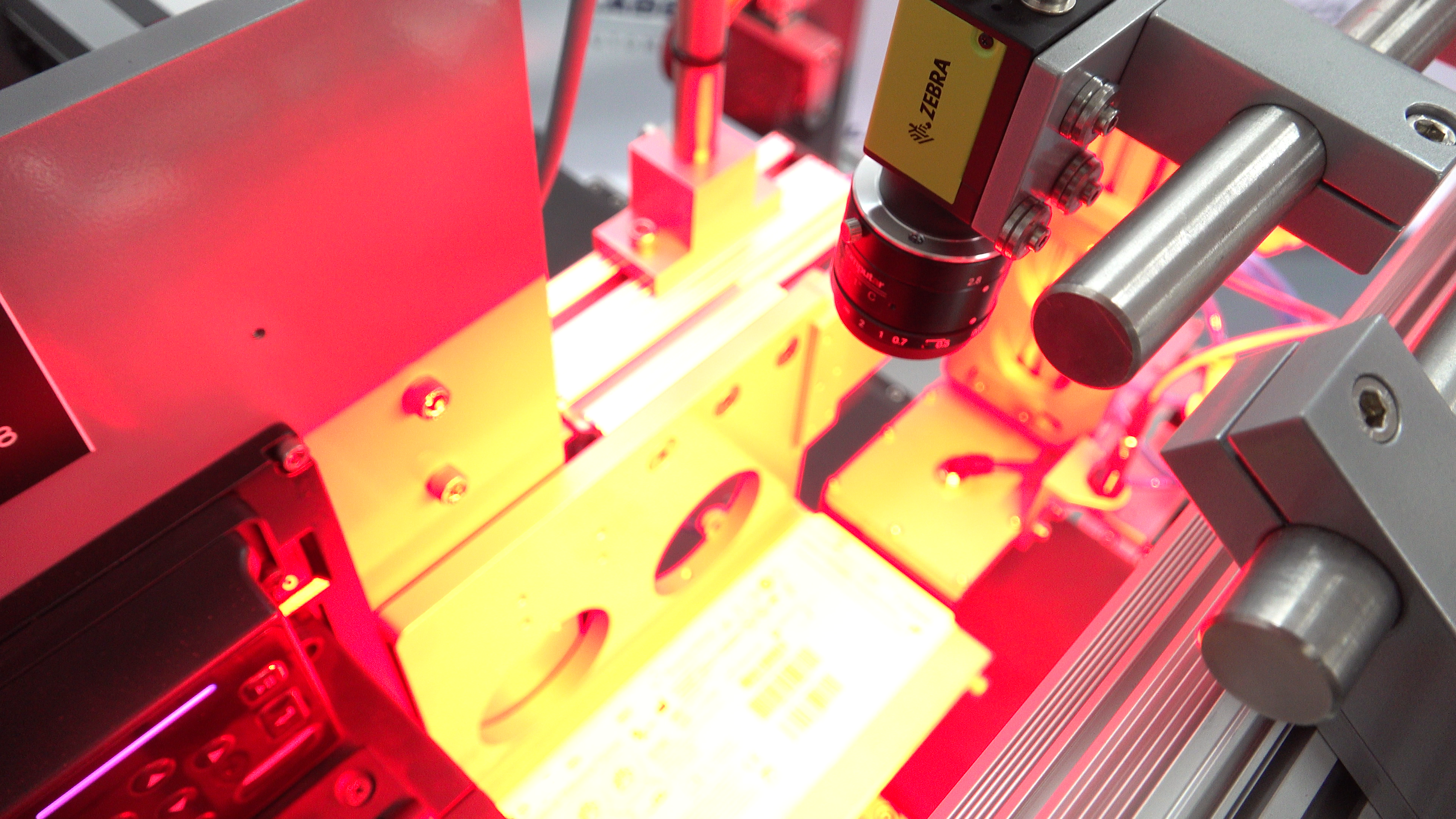

Vision System

VISION SYSTEM OR BARCODE SCANNER INTEGRATION

  • Verifies label presence, position, or barcode quality post-application

  • Benefit: Supports QA and traceability requirements

  • Use Case: Regulated industries, serialized labeling, GS1 compliance

RFID PRINT AND APPLY INTEGRATION



At LabelPack Automation, we offer complete RFID-enabled print and apply labeling solutions powered by the Zebra ZE511 industrial print engine. Whether you're meeting retail compliance mandates like Walmart’s RFID initiative or improving inventory visibility across your supply chain, our systems are ready to deliver.

Our 410 series print and apply systems can be configured to encode, verify, and apply UHF RFID smart labels in a single, efficient pass. By leveraging the Zebra ZE511's RFID capabilities, you get accurate tag encoding and high-resolution printing—perfect for case, pallet, and item-level tracking

Frequently Asked Questions About the LabelPack 410 Print and Apply Labeling System

Q: What is the LabelPack 410 Print and Apply Labeling Machine

The LabelPack 410 is an industrial-grade print and apply labeling system that automatically prints and applies pressure-sensitive labels to boxes, cartons, and shrink-wrapped packages. It’s designed for high-speed labeling and integrates with popular Zebra print engines for exceptional reliability and print quality.



Q: Can the 410 apply corner wrap labels on cases or cartons?

Yes, the 410 can be configured as a corner wrap label applicator, allowing it to wrap labels around the corner of a box — typically across the front and side. This is ideal for shipping labels and compliance labeling where visibility from multiple angles is needed.



Q: Can the LabelPack 410 integrate with existing conveyor systems?

Yes. The 410 print and apply labeler is designed to be installed inline with conveyor systems or used in standalone work cells. It supports integration with packaging lines in fulfillment centers, warehouses, and manufacturing facilities.



Q: Is RFID labeling supported on the 410 system?

Absolutely. The 410 can be equipped with an RFID-enabled print engine to encode and apply smart labels. This is ideal for customers in retail, pharma, or logistics who require RFID compliance labeling.



Q: What maintenance is required for the 410 print and apply system?

Regular maintenance includes printhead cleaning, roller checks, and adhesive buildup removal. The 410 is built for industrial environments and includes easy-access panels to reduce service time.



Q: Does LabelPack provide technical support and training?

Yes. LabelPack Automation offers full technical support, on-site or remote system setup, and operator training. Service plans and preventive maintenance packages are also available for long-term reliability.



Q: How do I request a quote or demo for the LabelPack 410 system?

To get pricing, a quote, or schedule a live print and apply demo, contact us through our website form, call us at 1-888-579-1528, or email sales@labelpackautomation.com. One of our automation experts will help design the right solution for your application.
