ZEBRA ZT200 SERIES INDUSTRIAL PRINTER
ZT231 INDUSTRIAL PRINTER
Zebra incorporated extensive customer feedback, as well as the legacy of our industry leading Stripe and S4M printers, to create the new ZT200 Series family of printers with elegant space-saving design, effortless setup, intuitive user operation, and ease of service and maintenance.
Models: ZT231, ZT231R

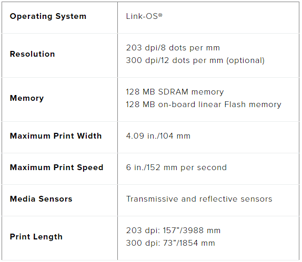

SPECIFICATIONS
FEATURES
Resolution:
- 203 dpi/8 dots per mm
- 300 dpi/12 dots per mm (optional)
Memory:
- 256MB SDRAM memory
- 256 MB on-board linear Flash memory
Maximum Print Width:
- 4.09 in./104 mm
Maximum Print Speed:
- 12 ips (203 dpi)
- 8 ips (300 dpi)
Media Sensors:
- Moveable transmissive and reflective sensors
Maximum Print Length:
- 203 dpi: 157 in./3988 mm
- 300 dpi: 73 in./1854 mm
Dimensions:
- ZT231 Closed:
- 17" L x 9.5" W x 11" H (432 mm L x 241mm W x 279 mm H)
- ZT231 with Liner Takeup Unit:
- 17" L x 9.5" W x 12.75" H (432 mm L x 241 mm W x 324 mm H)
Weight:
- ZT231: 20 lbs. (9.1 kg)
- ZT231 with Liner Takeup Unit: 24 lbs./10.9 kg
• Print methods: direct-thermal or thermal-transfer
• Construction: metal frame and metal enclosures
• Bi-fold media door with large clear window
• Side-loading supplies path for simplified media and ribbon
loading
• Thin film printhead with E3™ Element Energy™ Equalizer for
superior print quality
• Three-color LEDs for quick printer status
• 4.3” color resistive touch screen with intuitive menu for quick
operation and settings
• Communications: USB 2.0, RS-232 Serial port, 10/100 Ethernet,
and USB Host
• ENERGY STAR® certified
• Bluetooth Low Energy (BTLE) technology for enhanced location
precision
• ZebraDesigner Essentials – easy label design tool free at
www.zebra.com/zebradesigner
• Real-Time Clock (RTC)
Media Characteristics:
- Minimum Label and Liner Length:
- Tear Mode: 0.7"/18 mm
- Cutter Mode: 1"/25 mm
- Peel Mode: 0.5"/13 mm
- Media Width:
- 0.75"/19.4 mm to 4.5"/114 mm
- Media Roll Size:
- 8.0"/203 mm O.D. on a 3.0"/76 mm I.D. core
- 6.0"/152 mm O.D. on a 1.0"/25 mm I.D. core
- Media Thickness
- 0.003"/0.076 mm to 0.010"/0.25 mm
- Media Types:
- Continuous, die-cut, notch, black mark
