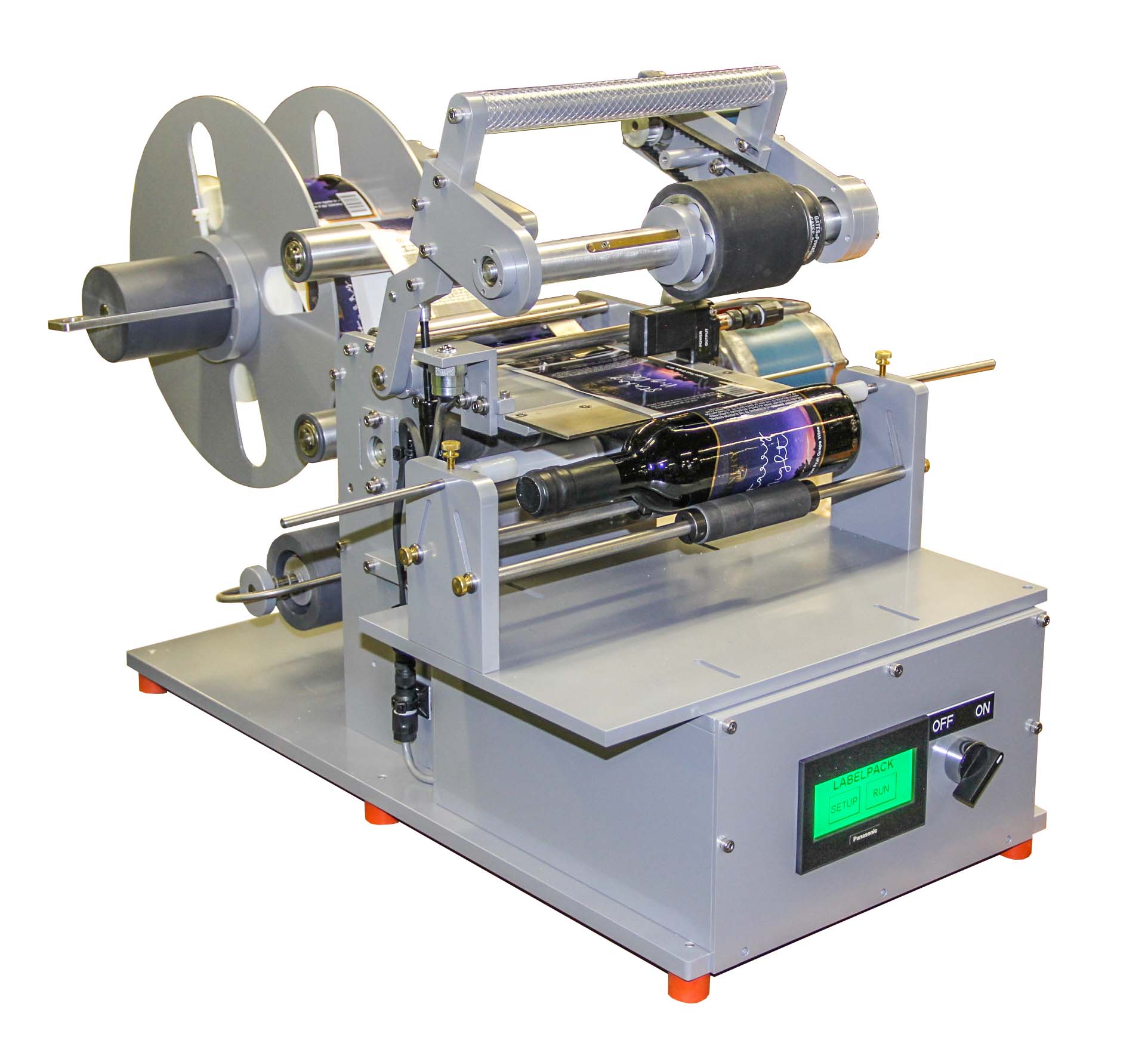

MODEL 135 TABLETOP WRAP
![135-label-applicator](https://www.lpautomation.com/hubfs/Image/135-label-applicator.jpg)
TABLETOP WRAP
The 135 Tabletop Wrap applies labels to round products with no need for compressed air. Just place your product in the caddy and press the foot switch. A top hold down is provided for empty or lighter containers.
Features
- Does not require compressed air
- Heavy-duty construction
- Easy-access label threading
- Easy-access product caddy
- Simple operation
- Winds up scrap liner
- Quick and easy changeover between products
- Single or front-back label application
SPECIFICATIONS
OPTIONS
DRAWINGS
- 12” label supply roll
- 25” maximum label width
- 12” caddy width
- Open ended caddy for over length products
- 5” – 8” product diameter
- 115 VAC electric supply
- Must be opaque, die-cut label
- Custom caddy for larger or smaller products
- Oversized frame for wider labels
- Compliant rollers for glass bottles with uneven sides
- Custom mandrel and label handling for tapered products
- Hot stamp for date coding
- Clear label sensor
- Label counter
Side View
Top View
