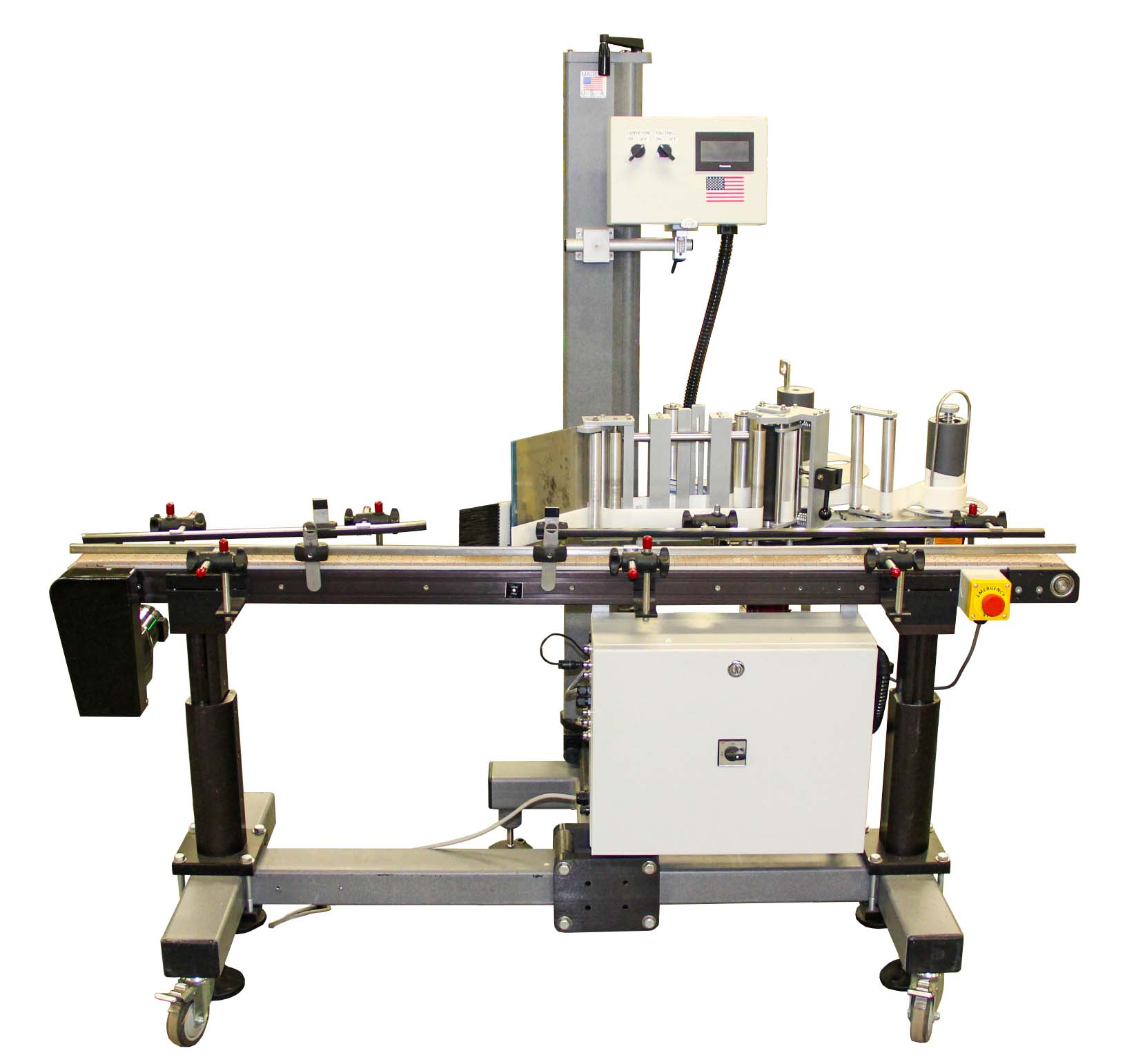

MODEL 320 WIPE

WIPE
The 300 series wipe-on labeling heads are economical heads that fit well into small spaces. The flexibility of the peel edge makes it easier to set up with any label.
Features
- Heavy-duty construction
- Choice of label roll diameter capacity
- Low tension web path
- Adjustable arm and peel plate
- Stepper motor label drive
- Remote controls for easy service
- Label feed up to 2400”/minute
- PLC controls
- Intuitive touchpad operator interface
SPECIFICATIONS
OPTIONS
DRAWINGS
- 12” diameter label supply roll
- 3” diameter label core
- 25” maximum label width
- 115 VAC electric supply
- 2400”/minute maximum label feed
- Customized to any application
- Low label, out of label alarms
- Clear label sensor
- Hot stamp lot coder
- Oversized frame for wide labels
- Extended snorkel for reaching into tight spaces
- Heavy-duty floor stand
Side View
Front View
