MODEL 213 WRAP BELT SYSTEM

WRAP BELT SYSTEM

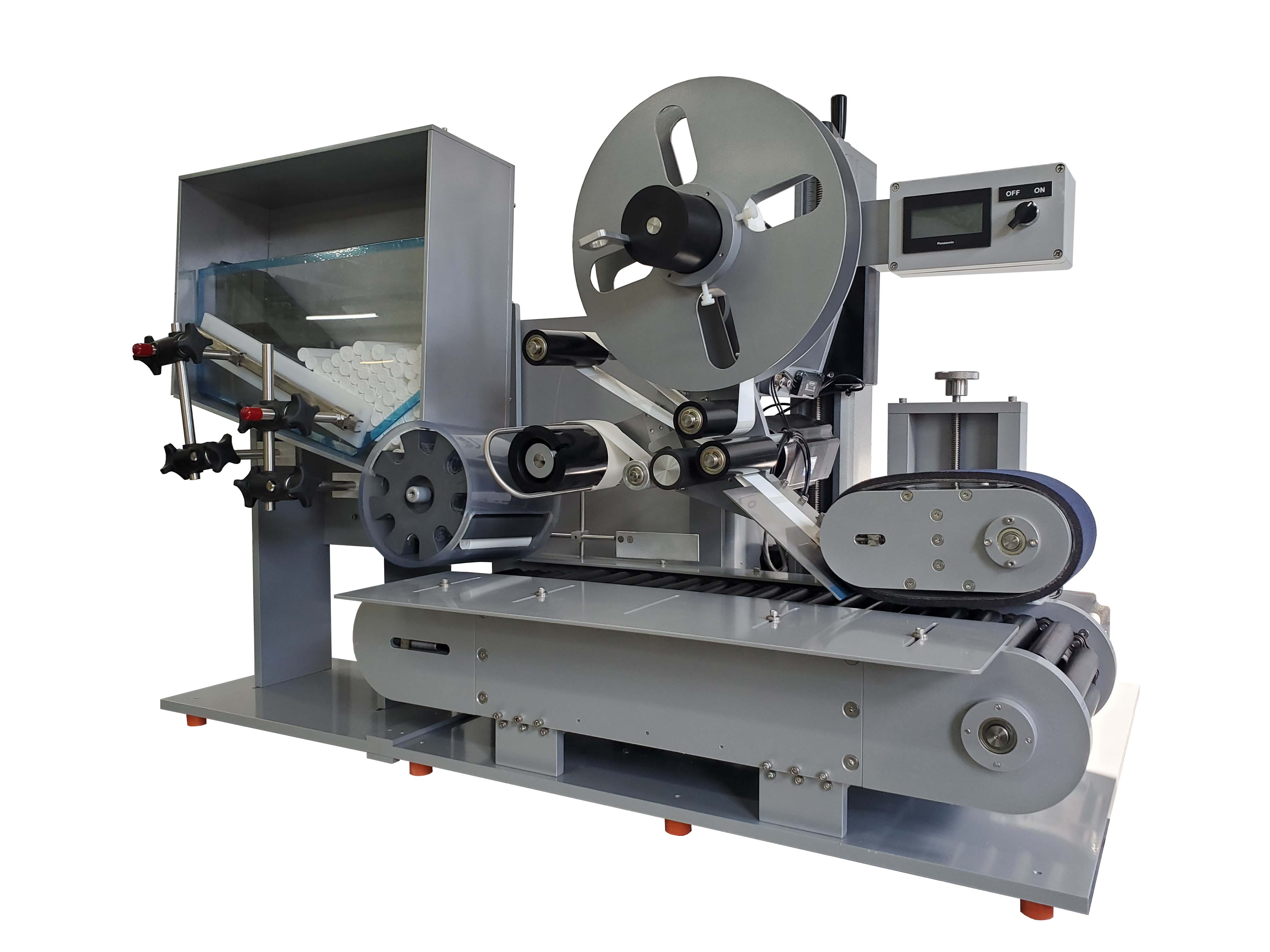

The 213 Wrap Belt System is designed to wrap small, cylindrical containers at high speeds. With a hopper option (as shown), product is loaded in batches, dispensed, and the label wrapped around the container. The belt catches the product and feeds it into a catch basin.
Features
- Heavy-duty construction
- Easy-access label threading
- Easy-access product caddy
- Simple operation
- Winds up scrap liner
- Quick and easy changeover between products
- Single or front-back label application
SPECIFICATIONS
OPTIONS
DRAWINGS
- 12” label supply roll
- 25” maximum label width
- 12” caddy width
- Open ended caddy for over length products
- 5” – 8” product diameter
- 115 VAC electric supply
- Must be opaque, die-cut label
- Custom caddy for larger or smaller products
- Oversized frame for wider labels
- Compliant rollers for glass bottles with uneven sides
- Custom mandrel and label handling for tapered products
- Hot stamp for date coding
- Clear label sensor
- Label counter
Side View
Top View
