# MODEL 530W WIPE SERVO

![520W-Sep-28-2021-03-43-26-43-PM](https://www.lpautomation.com/hubfs/520W-Sep-28-2021-03-43-26-43-PM.jpg)

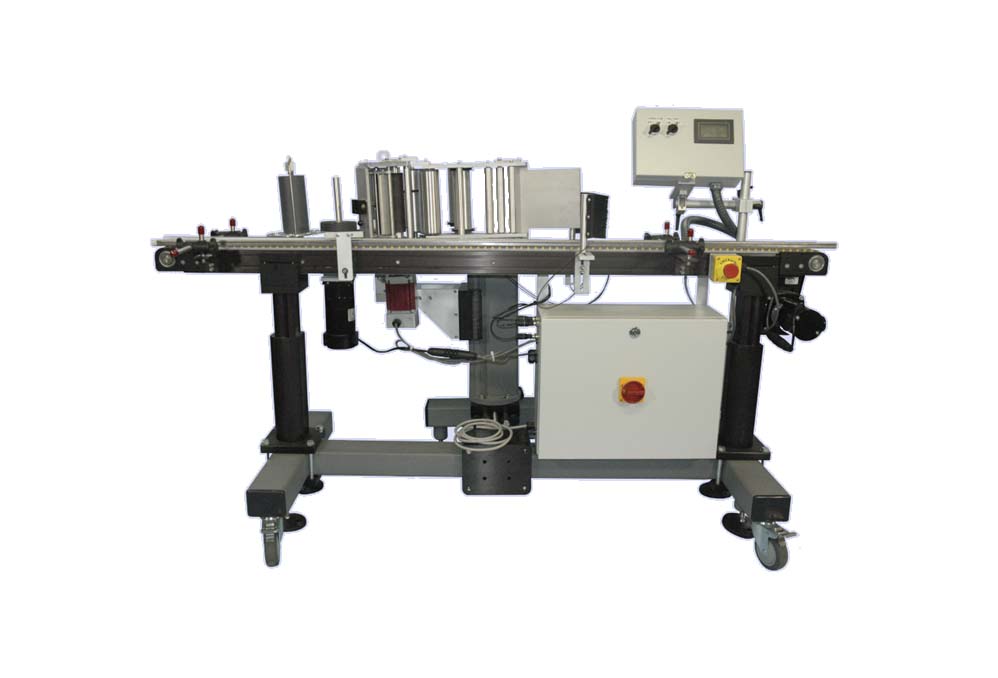

MODEL 530W

## WIPE SERVO

The 530 is a heavy-duty affordable wipe labeling system. The compact size, durability, and low cost make the system ideal for small, medium, or long-run jobs. Large volume, high-speed packaging application are handled with ease.

**Features**

- Heavy-duty construction
- Dancer arm for reduced web tension and smooth operation
- Label feed up to 2400”/minute
- Stepper motor direct-drive labeling head
- Stepper-driven wrap belt
- Digital speed control
- Intuitive touch pad interface
- Adjustable height and angle on operator interface
- Easy access to all controls and label supply from either side of conveyor

 Download Spec Sheet

[ Contact Us ](https://www.lpautomation.com/contact-us-form)

##### SPECIFICATIONS

##### OPTIONS

##### DRAWINGS

##### VIDEO

- 12” OD label supply roll
- 3” diameter label core
- 25” maximum label width
- 6” x 6’ conveyor
- 4” pacing wheel
- 4” x 18” wrap station
- Stepper driven labeler and wrap belt
- Variable speed DC motor on conveyor and pacing wheel
- Latch open drive for label-loading
- E-Stop
- Leveling feet
- 4” locking casters
- 115 VAC electric supply

- Low label/out of label alarms
- Hot stamp, ink jet or laser lot coding
- Digitally-synchronized speed control
- Programmable presets
- 16” OD label supply roll
- Connector guards
- Additional guarding
- Additional conveyor length
- Custom configurations



## **Side View**

## ![130 Side View Drawing](https://www.lpautomation.com/hs-fs/hubfs/130%20Side%20View%20Drawing.png?width=1042&name=130%20Side%20View%20Drawing.png)



## **Top View**

## ![130 Top View Drawing](https://www.lpautomation.com/hs-fs/hubfs/130%20Top%20View%20Drawing.png?width=1000&name=130%20Top%20View%20Drawing.png)
